Availability: IN STOCK
BLITZ 2
(Basic model without special sensors)
Warranty: 1 year + special after sales customer support
Description

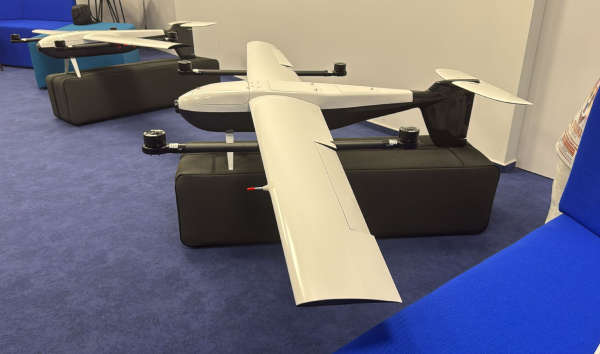

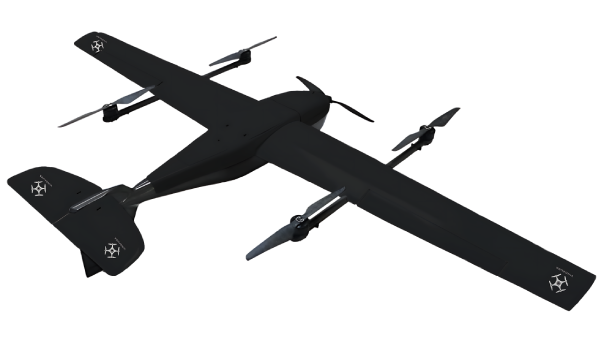

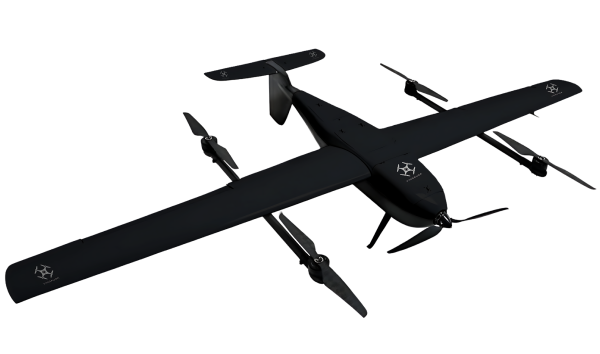

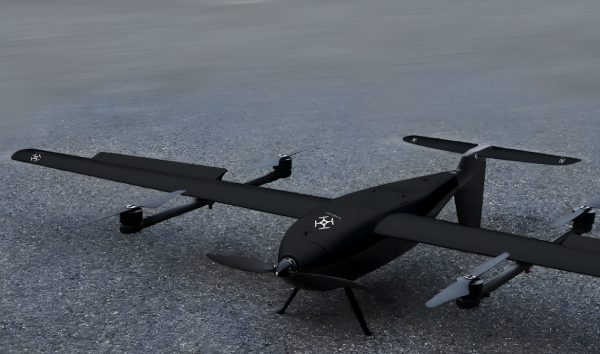

Blitz 2 is a VTOL (Vertical Take-Off and Landing) UAV platform, designed with a highly reliable power system and a locking propeller mechanism that extends flight time while ensuring superior safety and stability. Whether it’s exploring new territories or completing demanding tasks, the Blitz 2 provides a seamless flight experience.

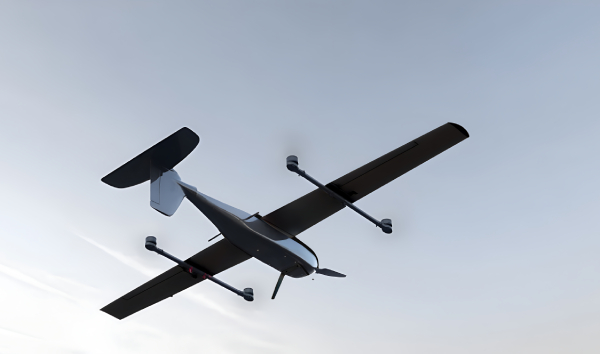

With a wingspan of 2300mm and a maximum payload capacity of 2.5kg, the Blitz 2 allows you to easily navigate the skies. This long-endurance electric VTOL (eVTOL) drone boasts an unloaded flight time of over 240 minutes, and when carrying a 1.5kg load, it maintains a remarkable 180-minute flight duration.

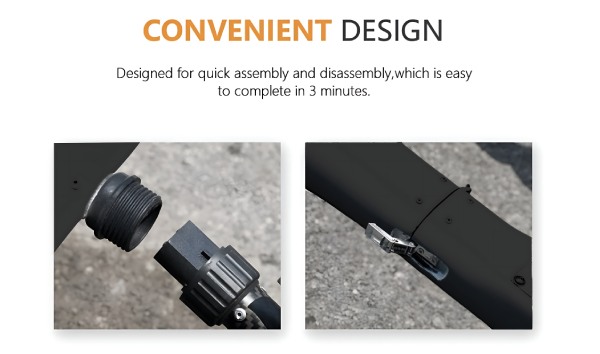

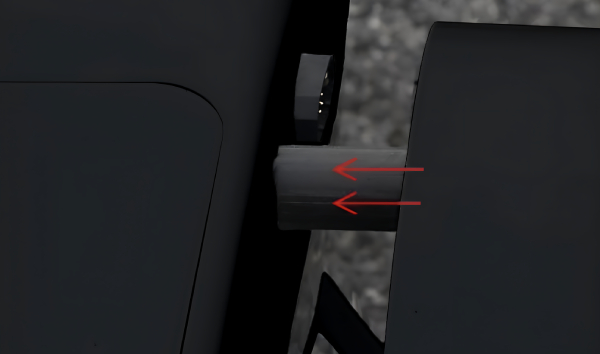

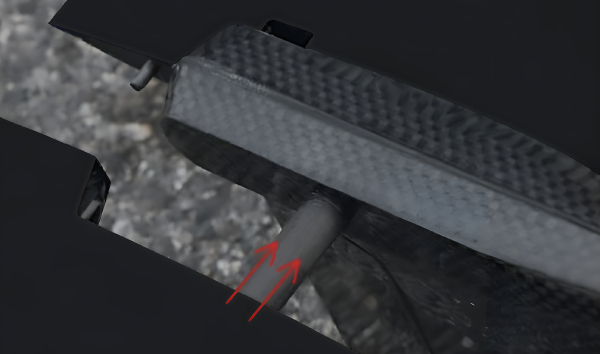

Crafted with lightweight and durable carbon fiber, the Blitz 2 frame weighs just 2kg, achieving an ideal balance of lightweight structure, high strength, and excellent flight performance. Additionally, its quick-disassembly design enables it to be assembled in just 3 minutes without the need for tools, making it perfect for fast deployment.

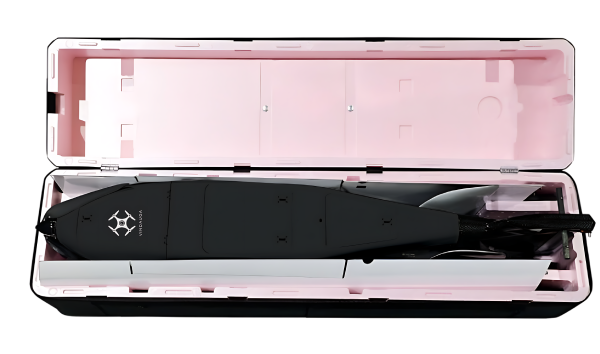

Packed in a compact, backpack-style case (120x30x35cm), the Blitz 2 is lightweight and easy to transport, making it highly portable and convenient for field operations.
Long Endurance: Capable of flying for up to 4 hours, maximizing work efficiency during operations.
Technical Specifications
- Frame Length: 1250 mm
- Frame Weight: 2 kg
- Wingspan: 2300 mm
- Take-off Weight: 12.5 kg
- Frame Material: Carbon Fiber Composite PVC
- Flight Time: 240 min (without payload); 180 min (1.5 kg payload)
- Wind Resistance: Level 5
- Maximum Range: 240 km
- Operating Temperature Range: -15°C to 50°C
- Propulsion System: T-MOTOR
- Control System: Optional; Pixhawk recommended
- Maximum Speed: 35 m/s
- Cruising Speed: 18 - 20 m/s
- Maximum Payload Capacity: 2.5 kg
- Maximum Take-off Altitude: 4500 m
- Batteries: 12s - 22000 mAh / 27000 mAh / 30000 mAh
Delivery Options
- Standard: Frame + propulsion system (motor, propeller, and ESC). Batteries, flight controllers (FC), and other components are not included.
- RTF (Ready to Fly) Option: Includes the frame, propulsion system, and a Pixhawk Cube Orange combo for immediate use.
